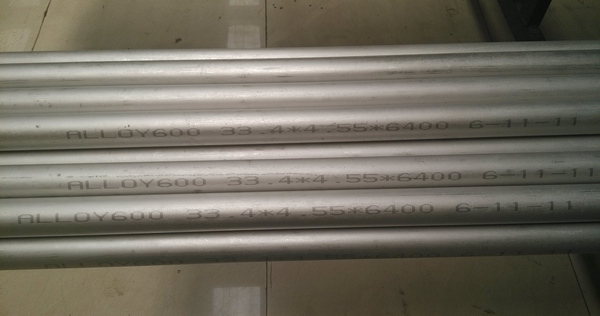

nickel-chromium-iron alloy 600 (UNS N06600 DIN 2.4816) tube




Inconel® nickel-chromium-iron alloy 600 (UNS N06600 DIN 2.4816) is a standard engineering material for applications which require resistance to corrosion and heat. The alloy also has excellent mechanical properties and presents the desirable combination of high strength and good workability. The high nickel content gives the alloy resistance to corrosion by many organic and inorganic compounds and also makes it virtually immune to chloride-ion stress-corrosion cracking. Chromium confers resistance to sulfur compounds and also provides resistance to oxidizing conditions at high temperatures or in corrosive solutions. The alloy is not precipitation hard enable; it is hardened and strengthened only by cold work.

The material properties and application places
The alloy is used extensively in the chemical industry for its strength and corrosion resistance. Applications include heaters, stills, bubble towers, and condensers for processing of fatting acids; evaporator tubes, tube sheets, and flaking trays for the manufacture of sodium sulfide; and equipment for handling abietic acid in the manufacture of paper pulp. The alloy's strength and oxidation resistance at high temperatures make it useful for many applications in the heat treating industry. It is used for retorts, muffles, roller hearths, and other furnace components and for heat treating baskets and trays.

Size Range: Φ6-Φ325mm*1-12m

Chemical composition (ASTM B163):
  Ni Cr Cu Fe W C Si Co Mn Nb P S Ti Al
%, Max - 17.0 1.50 10.00 - 0.15 0.5 - 1.0 - - 0.015 - -
%, Min 72 14.0 - 6.00 - - - - - - - - - -
%, Actual 75.6 15.63 0.08 7.99 - 0.031 0.11 - 0.59 - 0.007 0.003 - -


Mechanical properties
No. Tensile Strength
  σb(Mpa)
Yield Point
σs(Mpa)
Elongation Rate
δ5(%)
ASTM B163 >550 >245 >30
Actual 600 285 48
